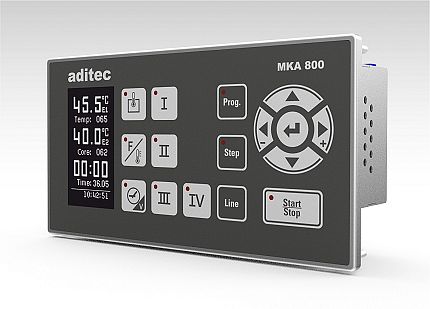

MKA 800

  • 2,7" LED display with 128 x 64 pixels and 16 grey scales
  • Robust stainless steel housing according to DIN standard / industry standard
  • Durable membrane keyboard
  • Degree of protection: IP65 (from the front)
  • Up to 30 programs are possible
  • 10 potential-free relay outputs
  • 4 galvanically insulated, analogue inputs
  • Freely programmable logic with AND/OR links and timers
  • Mini-USB Serial Port for firmware update, configuration transfer and programme transmission
  • Optional, at extra charge:
    - Ethernet/LAN via additional
      insert card ZSL
    - RS485 via additional
      insert card ZS4
    - USB host via additional
      insert card ZSU (Data logger function)
    - 2x analogue outputs via additional
      insert card ZA2
    - 2x analogue outputs
      1x vacuum Input via additional
      insert card ZAV21
  • 207 x 111 mm

Data sheet (PDF Download 798kb)

Quick start guide (PDF Download 2,3mb)

product enquiry
