Sleeve sensor Pt 100

With FEP (silicone) cable

  • Range of applications:-50°C up to +180°C

With PTFE (Teflon) cable

  • Range of applications: -50°C up to +250°C

Standard cable length: 2 m, 5 m, 7 m (please specify when you order)
Special cable: from 1 m (please specify when you order)

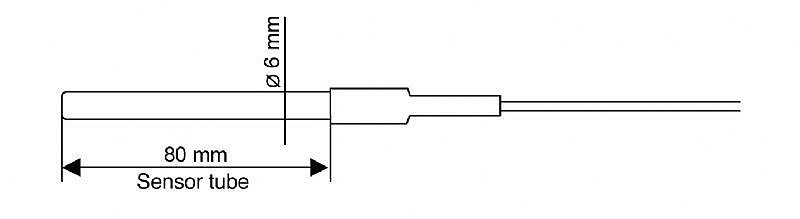

Scale drawing of the standard design

...with FEP (silicone) or PTFE (Teflon) cable

  • Sheath tube/sensor made of
    stainless steel 1.4571
  • Water tight design, shielded, 2-wire (optional 3-wire)
  • Standard dimensions sensor tube:
    L 100 mm x 6 mm Ø
    L 80 mm x 6 mm Ø
    L 60 mm x 6 mm Ø
  • Length & diameter of the sensor tube vary also. Please specify sensor dimensions when you order!
